| Brand Name: | Senhulike |
| Model Number: | SHG |
| MOQ: | 1 set |
| Price: | USD1500-2500 |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 50 sets/month |

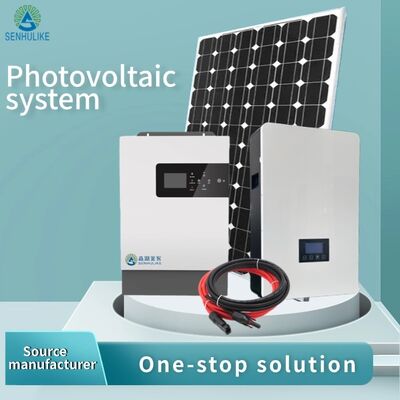

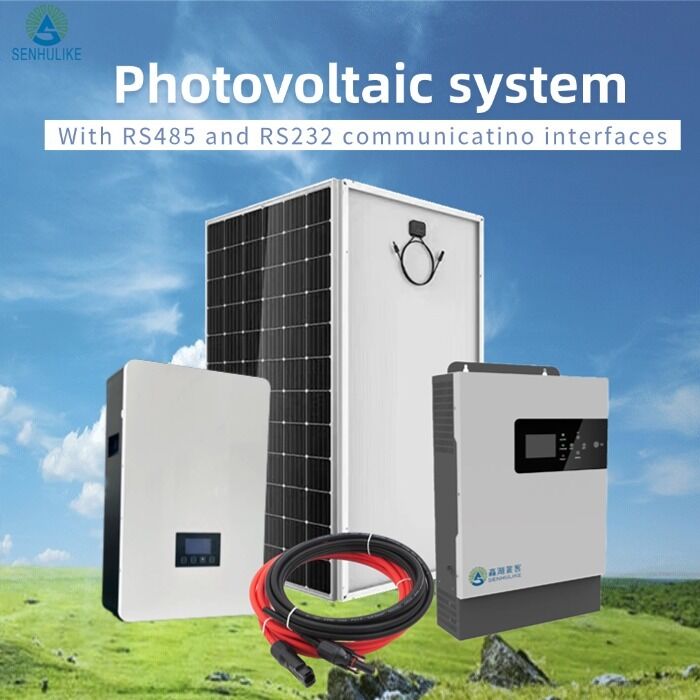

Road Smart Home Using Complete Solar Power System off Grid 5kwh 10kwh 15kwh 20kwh Solar Energy System
Description:

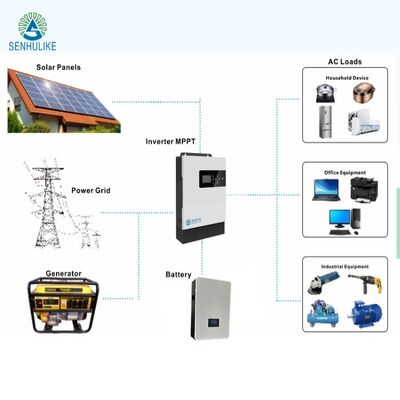

1.This is a hybrid solar power system, which means user can choose solar or home electricity to power the home appliances.
2.The solar inverter with a high PV input voltage capacity, more convenient to connect solar panels.
3.Based on an average of 5 hours of sunshine per day, solar panels can generate about 18KWH of electricity, which is enough for a household's basic daily consumption.
4.Around 10KWH power can be stored in the lithium battery when fully charged.

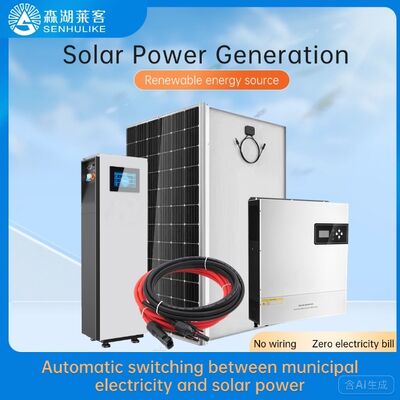

5.Automatic switching between municipal electricity and solar power
Quick Detail:
1.Hybrid system can achieve solar and ac power complementarity;
2.Mono solar panels, higher efficiency;
3.High-frequency inverter has higher inverter efficiency;
4.Lithium battery discharges more power than lead acid battery.
Specification:
| PRODUCTS | ITEMS | SPECIFICATIONS |
| Solar Inverter | Rated Output Power | 5000W |
| System Voltage | 48Vdc | |
| Built-in Mppt Charger | 100A | |
| Max PV Input Power | 5000W | |
| Max PV Input Voltage | 500Vdc | |
| Solar Panel | Rated Power | 450W |
| Type | Monocrystalline | |
| Quantity | 8 pieces | |
| Daily Power Generation | 18KWH | |
| Lithium Battery | Battery capacity | 200Ah/51.2V |
| Power Storage | 10KWH | |
| Type | LiFePO4 | |
| PV Cables | Length | Black & red 20 meters each |
| MC4 Connector | Quantity | 1 pair |
Application scenarios:
FAQ:
1.Q: How does a solar power system work?
A: Solar panels convert sunlight into direct current (DC) electricity, which is then transformed into household alternating current (AC) by an inverter. Excess energy can be stored in batteries for backup.
2.Q: Can the system still generate electricity on cloudy/rainy days or at night?
A: Power generation decreases during cloudy/rainy weather, and the system doesn't produce electricity at night. During nighttime, the system will draw power from battery and supply to the appliances.
3.Q: How much is a complete solar power system?
A: Solar power system needs to be customized, because every household uses different electrical appliances.
4.Q: What should I do?
A: Please contact our sales manager and tell us which appliances need to be powered. Then we will design a solution for your house.
